ACCURA PRECISION ROLLER

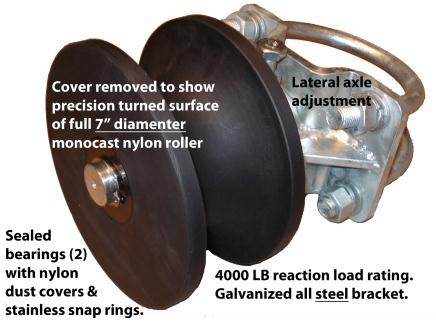

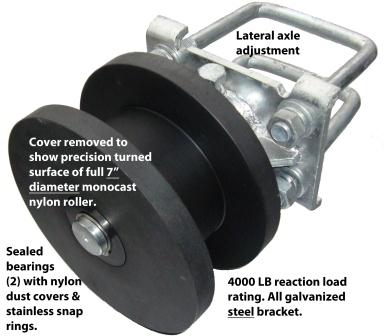

Roller – 2 3/8” (2 1/2") round or 2" Square graphite impregnated nylon roller is UV stabilized and a full 7" in diameter . The precision machined low friction surface helps extend the life of the gate coating. The high density of the nylon roller allows gates to roll with minimum effort. A perfect match for automated gates to extend the life expectancy of expensive gate operators.

Some others use smaller diameter rollers that don't roll as freely. A 6" diameter rollers uses as much as 26% LESS material to manufacture . Less dense materials that can lead to flat spots, or failing to turn the roller leaves seams from the molding process. All of these shortcuts cause excessive wear and tear on the system. Take a look at our comparison! Some competitors with cut corners in other ways - here is a photo of our square post bracket side by side with a copycat who felt that silver paint was a reasonable substitute for a galvanized zinc finish ...makes you wonder about the composition of the roller material.

Bracket – for 4” posts are standard but 2 7/8" (3"), 3 1/2", 4 1/2" and 6 5/8" are also available. The heavy duty design is made from 5/16” (8mm) thick galvanized steel rather than cast aluminum for long term performance. Rather than a single vertical gusset we use a 3 way gusset for superior strength. The axle housing is 1/2” thick and penetrates the base. U bolts, nuts, washers included. The 1/2" set screw includes a locking nut.

Axle – 1-1/8” (28mm) machined steel axle is galvanized for long life. Stainless steel snap rings on both sides securely retain the wheel. Machined set screw section in the axle allows for fine tuned roller alignment.

Bearings – two 62/28 RS -  rubber sealed bearings are pressed into both sides of the roller.

Nylon Dust Covers – protect the bearings on each side of the wheel.

Load Rating – 4000# reaction load.

Warranty – Five (5) Year Limited Warranty. See warranty certificate for details.

COVER

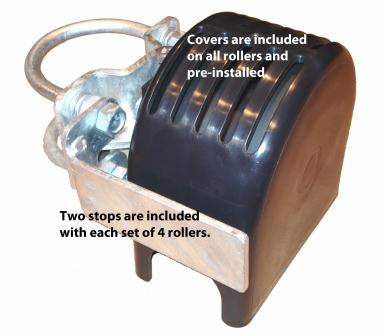

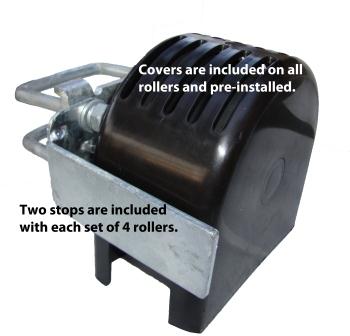

Cover – Pre-installed covers are included with every roller saving installation time and insuring that you always have them when you need them. UV stabilized black plastic covers are vented to allow moisture to drain so they work on either the top or bottom roller. Unlike some our cover is firmly held in position by the gusset, the set bolt and the axle end to prevent it from turning or sagging and dragging on the gate frame.

Cover Guards - Heavy 1/4" (6.3mm) steel strike plates protects the roller covers during opening or closing. This is especially important on manually operated gates. Since the gate rolls so freely the weight of a heavy gate hitting the stop is transferred to the post rather than the cover or roller. Two are included in every kit at no additional charge.

ASTM Nesting Latch EXCLUSIVE - Heavy duty latch is adjustable laterally from the face of the post to the center of the receiver from 4" to 8 1/2" for easy installation. The end of the receiver is approximately even with the post and recessed behind the mounting bolts in compliance with ASTM 2200 for automated gates.

Nesting Latch - Heavy duty latch is adjustable laterally from the face of the post to the center of the receiver from 3" to 8 1/2" for easy installation. The end of the receiver extends just 2 1/4" out from the post and is perfect for manually operated gates.
