GTO/PRO 1000 Service Parts

Front Mount Assembly Kit
- FM313

Kit Includes:
22. Front Mount -327IH
39. Clevis PIn, 3/8" x 1-1/8"- RB607
40. Washer; 3/8" -RB664
41. Hairpin Clip - RB639

Discontinued

Rear Mount Assembly Kit -
FM314

Kit Includes:
9. Rear Mount - 308IH
11. Nut, 1/2" -13 Hex Nylock - RB654
12. Washer: 1/2" Flate SAE - RB654
39. Clevis PIn, 3/8" x 1-1/8"- RB607
40. Washer; 3/8" -RB664
41. Hairpin Clip - RB639

Front End Assembly Kit -
A217

Kit Includes:
2. Screw, 10-24 x 3/8" TCS-RB653
14.Nut, Insert, Limit Switch -506IH
19. Front Cover - 303IH
20. Seal Tube -326IH
21. Bearing
22. Front Mount -327IH
23. Scraper Seal - RB633
24. Front Support Bushing - 508IH
25. Push Pull Tube - 335IH
26.Rear Support Bushing
27. Roll Pin, 1/8" c 3/8"
28 Acme Nut
29. ACME Screw Modified
31. Tolerance Ring

Sensor Switch Assembly
Kit - FM315

Kit Includes:
15. Nut, slide Limit - 504IH
36. Switch Harness -A202
37. Screw 8x 3/8" TypeB - RB658
42. 4" Tywrap - RB534

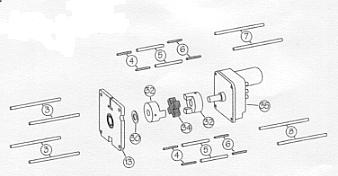

Gear Motor Assembly Kit -
A204

Kit Includes:
3. Standoff, Front - 309IH
4. Screw, ATS 10-32x1-5/8" RB650
5. Standoff, Middle - 310IH
6. Screw, ATS 10-32x 2-1/4" RB651
7. Standoff, Upper Rear- 305IH
8. Standoff, Lower Rear- 306IH
13. Mid. Slide Limit - A201
15. Nut, slide Limit - 504IH
30. Washer, 5/16"-10x1/2 odx.003
32. Flex Coupling Hub - 321IH
34. Flex Coupling Sock - 322IH
35. Gear Motor - RB300
36. Switch Harness -A202
37. Screw 8x 3/8" TypeB - RB658
42. 4" Tywrap - RB534
