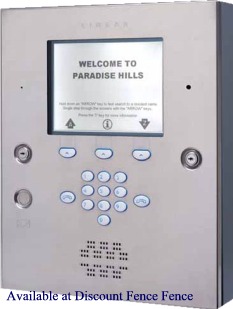

AE-2000
The Ultimate in Telephone Entry
10,000 users=Total Access |
|
|
|
|
|
The
AE-2000 is quite the greeter and the instructor. Its friendly,
automatic voice prompts guide visitors step-by-easy-step
to simplify usage. That includes switching to provide instruction
in either English or Spanish
|
As
befitting
Linear's flagship telephone entry system, Linear has equipped
the AE-2000 with and attractive, highly functional display.
Visitors will have no trouble using the AE-2000 to locate
and contact residents. A temperature-compensated, backlit,
VGA resolution, LCD display presents up to 24 names at a
time on separate alphabetical screens. That is in stark
contrast to most telephone entry systems, which require
you to scroll continuously through the entire alphabet,
searching for a name. The three keys directly below the
display operate as "solf keys" changing function
with each mode. For instance, in the Directory Mode, the
keys become A and Z directional controls for scrolling through
the alphabetical listing. In the informational Mode, the
keys permit switching between Englis and Spanish.
Introductory
Price of $3,422.00
|
|
Features:
- Articulated, double-locking, stainless
steel front panel
- Temperature compensated, back-lit
VGA resolution LCD display
- Back-lit keys
- Up to 10,000 user capacity
- Built-in RF receiver
- Many installation choices: surface,
recessed, gooseneck
- Built-in modem for remote programming
- Programmable via AccessBase 2000 Software
- Four independently configurable output
relays
- Built-in access control for up to
four portals
- Network ready
- Up to 256 interconnected portal capacity
- Typical applications include apartment
and condo complexes, high rise buildings, residential communities,
industrial complexes
- Access control functions, 32 validation
(security) groups, 32 time zones, 32 door schedules, 32
floor schedules
- RF frequency: 318 MHz
- 15.25" W x 18.75" H x 4"
D
|
|

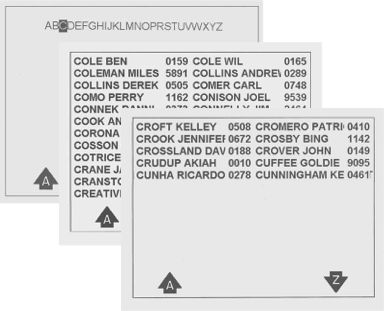

Ease
of use screens.
|
|
|
General
Specifications
|
OPTIONAL
EQUIPMENT:
|
CCM-1: Color Camera
receives power from control board
CPDM-1: digital modulator combines video output
of camera with CATV source to allow tenants to view on
their TV who is at the AE-2000
TR-2000: trim ring for completely flush/recess
mounting
MIO Interface Module: multiple Input/Output modules
for monitoring and control of additional points; can also
be used for elevator control (call for availability)
No Phone Bill Interface: NPB interface modules
allow AE-2000 to bypass central office and connect directly
yo user's phone system, eliminating need for phone line
at AE-2000 (call for availability) |
| CONNECTIONS: |
All connections
grouped together in neighborhoods for ease of installation
and maintenance; wire connections via removable terminal
blocks |
| ENCLOSURE: |
16 gauge powder coated
steel cabinet; 16 gauge brushed stainless steel front
panel with articulating double-lock configuration |
| STANDARD
EQUIPMENT: |
AE-2000 Four Portal
(with full access control) Telephone Entry system with
built-in radio Receiver, RS232 port, and modem for computer
programming; accepts transmitters, keypads, and card readers
as imputs; surface or goosenect mounting standard. |
| Clock/Calendar: |
built in 24-hour clock/calendar
with battery back-up and dailight savings adjustment |
|
| |
| Communications: |
Full duplex, hands-free
operation |
| Programmable
Features: |
Telephone Entry: 1- to
4-digit directory code length; display messages; talk
time duration, extended talk time per user |
| Access
Control: |
32 Validation Groups (Security
Levels): Validation Groups let user allow or deny access
based on date/time (Tinme Zones), door (Door Schedule),
or flow (Floor Schedule) 32 Time Zones, 32 Door Schedules,
32 Floor Schedules |
|
OUTPUTS
|
| Relay: |
4
form "C" relays, both can be configured for
open/close; all relay contacts have exclusive RFI, ARC,
and lightning suppression |
| RS232: |
for local
computer communication - 33.6 Kbps |
| Modem: |
For remote
computer programming - 33.6 Kbps |
| Video: |
BNc connector
for optional color camera |
|
DISPLAY
|
| Front
Panel: |
Teleperature compensated
VGA LCD technology |
| Keypad
Lighting : |
Individual back-lighting
per key |
|
INPUTS
|
| RF: |
intergal 318 MHz super
heterodyne receiver (requires optional AE-1000 or AE-2000
antenna) |
| PBUS: |
3 sets for interconnection
of up to siz proprietary addressable devices. |
| Request
To Exit: |
4 normally open inputs;
each input assigned to specific relay |
| Door
Sense : |
4 normally closed inputs
used to monitor the status of the device connected to
the relay for a forced door propped door alarm; supports
auto-relock once the device is restored |
| LEDs: |
For configuration, status
and troubleshooting |
| Wiegand: |
2 sets of Wiegand inputs
for connecting 26, 30, or 31 bit Wiegand devices; each
Wiegand input supports two LEDs |
|
POWER
|
| Input
Power: |
120 VAC, 60 Hz |
| Operating
Power: |
12/ 24 VAC or VDC |
|
GENERAL
|
| OPERATING
TEMPERATURE: |
-22° to +167° F
(-30° to +75° C) |
| ANTENNAS: |
AE-1000: remote, omni directional;
includes mounting hardware and five feet of cable
AE-2000: remote, directional-type; includes mounting hardware
and ten feet of cable |
| MEMORY |
10,000 users;
each can have directory code, keypad entry code, and card
or transmitter; 20,000 event transaction log; all data
stored in field upgradeable FLASH memory |
| DIMENSIONS: |
Panel: 19"
H x 15.25" W x 4" D
Trim Ring: 21" H x 17.25" W x 4"
D |
|
|
|
|
|
Product
#
|
Description
|
Price
|
Order
|
|
AE-2000
|
Large Application Telephone
Entry System
|
$3,422.00
|
|
|
ACM-1
|
Computer Cable:
connects AM/II to serial printer
|
$22.95
|
|
|
A2C/DB9
|
Computer Cable:
connects AM/II to serial port of a computer; 9 pin and 25
pin models
|
$22.95
|
|
|
A2C/DB25
|
Computer Cable:
connects AM/II to serial port of a computer; 9 pin and 25
pin models
|
$22.95
|
|
|
EXA-2000
|
Remote Omni-Directional
Antenna. Includes Mounting Hardware & 5' of Cable
|
$49.00
|
|
 |
|
Compatible
Linear Transmitters
Block Code Ability
|
|
Product
#
|
Description
|
Price
|
Order
|
|
MT-1B
|
Single
Button Handheld Transmitter
|
29.50
|
|
|
MT-2B
|
Double
Button Handheld Transmitter
|
32.50
|
|
|
ACT-31B
|
Single
Button Miniature Transmitter
|
29.50
|
|
|
ACT-34B
|
Double
Button Miniature Transmitter
|
32.50
|
|
|
|
Accessories
|
|
Product
#
|
Description
|
Price
|
Order
|
|
|
Remote
Proximity Receiver:
to allow short read range. (3-5 inches) Mounts in a single
gang box
|
125.00
|
|
|
|
Remote
Radio Receiver:
to allow read ranges from 3- 500 feet housed
in a weather proof metal enclosure
|
159.00
|
|
|
AM-KP
|
Wired
Keypad:
to allow access via a 1-6 digit entry code.
Housed in a weatherproof metal enclosure.
|
169.00
|
|
|
|
Proximity
Reader
|
143.00
|
|
|
|
Proximity
Card (minimum 25)
|
2.79
ea.
|
|
|
|
Proximity
Tag (minimum 25)
|
4.95
ea.
|
|
|
|
Card
Reader Interface:
integrates 26 or 31 bit Wiegand devices Up
to two device per AM-CRI
|
155.00
|
|
