AM3Plus 4-Portal Access Controller

The Model AM3Plus 4-Portal Access Controller is designed for use as a primary access control device for gated communities, parking garages, office buildings, apartments, dormitories, hotels/motels, commercial buildings and recreational facilities.

Discontinued.

Description:

The Model AM3Plus 4-Portal Access Controller is designed for use as a primary access control device for gated communities, parking garages, office buildings, apartments, dormitories, hotels/motels, commercial buildings and recreational facilities.

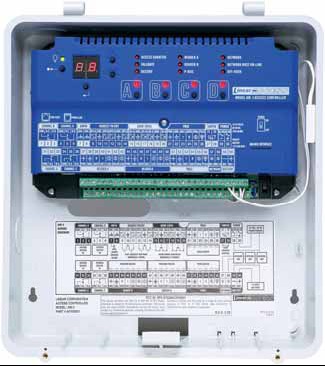

Housed in a lockable, plastic enclosure, the AM3Plus features a 2-digit LED display, nine status indicators, four relay indicators with four relay activation pushbuttons. Three programming buttons, a reset button, and a power indicator are present. The enclosure is monitored with a magnetic tamper switch.

The system controls its four output relays by responding to various input devices that react to proximity cards, transmitters, and entry codes. The four relay output channels can be programmed to control electric door strikes, magnetic locks, door & gate operators, or barrier gates.

Access is granted or denied depending on the current user’s authorization to gain access and system settings that control groups of users or all users. Complete access control event logging, access time restriction, access location restriction, and administration functions are also available to manage the installation.

For easy programming, the AM3Plus contains Linear's built-in browser-based AXNET software. The system can be programmed and maintained from any computer world-wide, without using dedicated computer software. The AM3Plus is also compatible with Linear’s powerful AccessBase2000 dedicated access control PC software.

The AM3Plus is network ready. AM3Plus units can be interconnected with Linear’s AE1000Plus and AE2000Plus Telephone Entry Systems through a 3-wire RS-485 or modem network. The AM3Plus can be used in networks with the legacy AM-3, AE-1000, and AE-2000 Telephone Entry Systems in installations programmed with AccessBase2000 software only.

Two sets of Wiegand inputs are available for connection to 26, 30, or 31-bit Wiegand devices (card readers, etc.). Two sets of PBUS inputs are available for connection to Linear’s line of remote accessories.

TWO PROGRAMMING CHOICES:

AM3Plus now offers you two programming choices. Use any PC at any location to access programming using Linear's AXNET that is built into the controller. Or use a dedicated PC to access programming using Linear's AccessBase2000
software. Both choices allow multiple unit connectivity (see capabilities in the table below).

Features:

• -Full control of 4 doors; each supporting request to exit and door status monitoring
  -Direct input for 2 card readers; add AM-CRI's for more
  -Local programming using a PC
  -Remote programming using a PC (optional Model ACM-1 modem required)
  -Relay auto lock/unlock schedules
  -Automatic door relock when door sense input is used
  -Extensive ESD and lightning protection of all inputs and outputs
  -Cabinet tamper switch included; tamper events are tracked in the event log.
  -All data memory is non-volatile FLASH with data retention in excess of 10 years
  -RF frequency: 318 MHz
  -11.5" W x 12.5" H x 4" D

Specifications:

• OUTPUTS
  -Relay: four Form “C” relays; all can be configured for open/
  close; all relay contacts have extensive RFI, ARC and lightning
  suppression
  -RS232: for local computer communications

  DISPLAY
  -Front Panel: two 7-segment LED displays for system
  configuration, status and troubleshooting

  INPUTS
  -PBUS: two sets for connecting up to six proprietary
  addressable devices
  -Wiegand: two sets of Wiegand inputs for connecting 26, 30, or 31
  bit Wiegand devices; each Wiegand input supports two reader LED
  indicators
  -Request To Exit: four normally open inputs; each input assigned
  to specific relay
  -Door Sense: four normally closed inputs used to monitor the
  status of the controlled portal to support forced door/propped
  door alarm; also for auto-relock.
  -Access Buttons: four pushbuttons used to manually control each
  of the four relays
  -Tamper: tamper switch activates when cabinet is opened
  -LEDs: 14 indicators for status and troubleshooting


• POWER
  -12/24 VAC or VDC; 16 VAC transformer included
  OPERATING TEMPERATURE
  -22° to +149°F

  DIMENSIONS
  -11.5 in L x 4 in W x 12.5 in H (292 x 102 x 318 mm)

  CLOCK/CALENDAR
  -Built-in 24-hour clock/calendar with battery back-up and daylight
  savings adjustment

  ENCLOSURE
  -Plastic cabinet suitable for indoor use; secure with lock/key
  (included) or screws
