GTO/PRO SW4000XL Swing Gate Opener

GTO/PRO SW4000XL Swing Gate Opener Package

The GTO/SW4000XL Model Residential Swing Automatic Gate System for light commercial single or double residential gates. The Column Mount Solution.

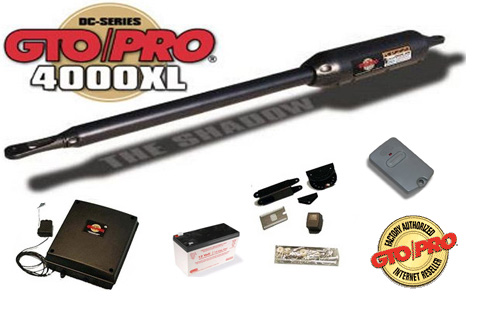

Package Includes:
1 x Transmitter
1 x Battery

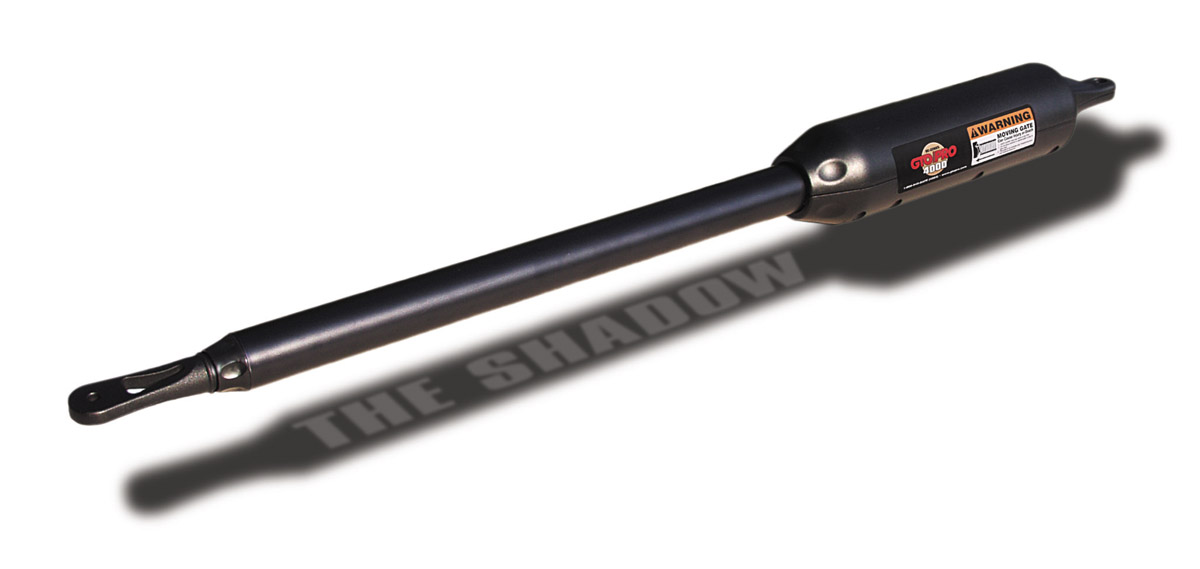

1 x Operator Arm
1x Receiver
1x Mounting Hardware
1x Charging Transformer
1x Control Box & Control Board
* UL325 Certified
* Manual

***** Free Shipping on All GTO Gate Openers *****

Part Number	Description	List Price	Our Price	Buy Now
SW4000XL	GTO/PRO SW4000XL Master Unit	~~$1,924.00~~	Discontinued	Replacement: SW-4000XLS
SW4200XL	GTO/PRO SW4200XL Slave Unit (For Double Drive Gate)	~~$915.00~~	Discontinued	Replacement: SW-4000XLS
R4388	Push-to-Open Post Pivot Bracket (For standard operator/brackets only)	~~$96.50~~	$45.74
HDB201100	Heavy-Duty Bracket Kit w/ Hardware Bag Upgrades the operator to handle 1000 lb & 20ft max gate. Also acts as push to open. (Includes HB4000 and H200HD)	~~$224.00~~	Discontinued

Guaranteed Lowest prices... We will beat all competition! 800.878.7829

User Manual SW4000XL

User Manual SW4200XL

Standard SW4000XL

Note: This model cannot accommodate column mounting when the distance of
lines A & B (in picture above) combined length is greater than 14 inches.
The GTO/PRO SW4000XL can accommodate the combined length over 14 inches.

SW4000XL with Heavy-Duty Brackets upgrade

Note: This model cannot accommodate column mounting when the distance of
lines A & B (in picture above) combined length is greater than 17 inches.

Features of the SW4000XL automatic gate system:

Handles gates up to 16' (4.88 m) long, up to 650 lbs. (226.8 kg) each leaf.
Full systems capable "add on ready" heavy-duty control board includes adjustable obstruction sensing, gate sequencing, and auto closing settings (0-120 seconds).
High cycle capability with true soft start and stop operation.
New sleek design with continental appeal
Full access ready package includes battery, radio receiver, entry transmitter, AC transformer, and all necessary mounting hardware for a complete installation.
Accommodates push or pull-to-open installations.
Solar option available
UL Rated for Class I, II, III and IV system certified to be in compliance with UL 325, 4th edition.

GTO/PRO SW4000XL/SW4200XL (SW4200XL) dual swing gate system. The GTO/PRO SW4200XL works as a "slave" automatic gate operator when installed with the GTO/PRO SW4000XL. The PRO SW4200XL will work on gates that are 3.5 ft. to 16 ft. in length, and weighing up to 650 lb. The PRO SW4200XL wires into the "master" control box; the control board can be programmed for dual gate operation and the sequencing of the two gates. The PRO SW4200XL includes: operator arm w/ 50 ft. power cable, second operator wiring harness, mounting hardware, caution signs.

DRIVE

Powered by a resilient 12 vt. DC motor.
Temperature rating of motor: -30 F To160 F
Opening time is 18-20 seconds.
Range of arm stroke is up to 24". Operator length with arm fully retracted is 39", mounting point to mounting point.

POWER

The PRO SW4000 system is powered by a 12 volt DC /7.0 amp hour, sealed, rechargeable battery.
Battery charge maintained by a 120 V AC/60 HTZ input and 18 V AC at 40. output, transformer rectified to 14 V DC through the GTO Control Board.

NOTE: Transformer should never be connected directly to any Battery.

Optional:

GTO Solar Panel Charger: Float voltage 14.5 V DC output from a 19-3/8" x 15-1/4" silicon alloy panel. Generates minimum of 10 watts at 600 mA. A gated diode on the control board prevents battery discharge.

CONTROLS

The GTO control board can be programmed for pull-to-open or push-to-open.
Adjustable Auto Close, obstruction sensitivity and dual gate sequencing.

Auto-memorization of digital transmitter code.
Changing regulated circuit on control board. "Sleep draw" is 40 mA; "Active draw" is 2 to 5 amps.

GTO remote-mounted RF receiver tuned at 318 MHZ.

OPERATIONAL CAPACITY
The PRO-SW4000 will handle gates weighing up to 650 lbs. and up to 16 ft. in length if all proper installation procedures have been followed. Note that ball bearing hinges should be used on all gates weighing over 250 lbs.

GATE CAPACITY CHART
(Estimated number of cycles per day based on use with a transformer

1000 lb.	115	110	105	100
900 lb.	120	115	110	105
800 lb.	125	120	115	110
700 lb.	130	125	120	115
600 lb.	135	130	125	120
500 lb.	140	135	130	125
400 lb.	145	140	135	130
300 lb.	150	145	140	135
	UP to 10 ft	12 ft.	14 ft.	16 ft
