Classic

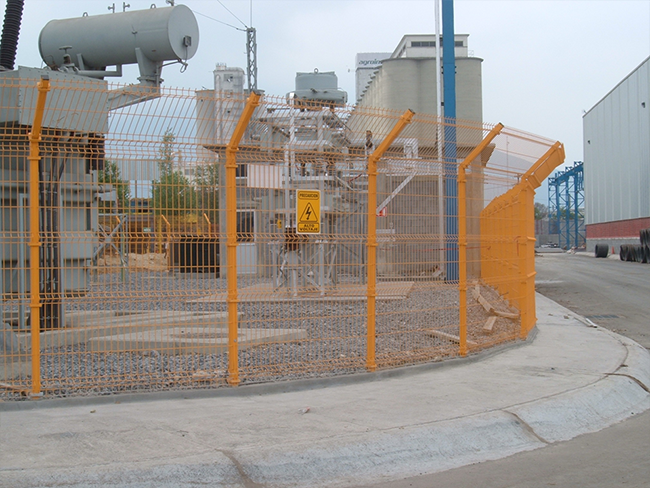

Designmaster Classic Fence wire panels are galvanized only with the best technology to make them strong and corrosion resistant. All wires are carefully welded on every union. The V-brace on each panel adds extra strength.



Advantages of having a classic Designmaster Fence.

  • Long lasting
  • UV and salt spray tested
  • Strong and secure
  • Non-climbable
  • Aesthetically Pleasing
  • "V" brace for extra strength

Free shipping on orders over $2100!
Classic Swing Gate Kits are in a unique category found here since they are
available only in black, white and green - Classic Swing Gate Kits.

Discontinued
Panel
Height
Brace per Panel
Weight (Lbs)
24"H x 96"W 2' 2 16.6
48"H x 96"W 4' 2 28.9
60"H x 96"W 5' 3 37.3
72"H x 96"W 6' 4 44.3
96"H x 96"W 8' 5 58.9
Extra Panel Specs
Length (ft) 8'
Width (ft) 8'
Opening (width x height) (in) 2" x 6"
Gauge 6
Wire breaking load 80,000 - 100,000 PSI
Weld-shear strength 1,051 lbs
Galvanized 0.50 oz/square foot
Polyester coating thickness 1000 microns (4 mils approx)



Post
Size
Gauge
Weight (Lbs)
48"H 2 1/4 x 2 1/4 16 7.4
72"H 2 1/4 x 2 1/4 16 10.9
84"H 2 1/4 x 2 1/4 16 12.7
96"H 2 1/4 x 2 1/4 16 14.5
132"H 2 1/4 x 2 1/4 16 19.9
96"H plus 45 degree angle 2 1/4 x 2 1/4 16 18.1
132"H plus 45 degree angle 2 1/4 x 2 1/4 16 23.5



Accesories for
2 1/4" x 2 1/4"
Weight (Lbs)
Box of 25 Steel Brackets 9.0
Box of 25 Single Clamp 9.9
Steel Base for Surface Mount 4.2



Post
Size
Gauge
Weight (Lbs)
48"H 2 x 2 16 6.6
72"H 2 x 2 16 9.8
84"H 2 x 2 16 11.4
96"H 2 x 2 16 13.0
132"H 2 x 2 16 17.9
96"H plus 45 degree angle 2 x 2 16 16.7
132"H plus 45 degree angle 2 x 2 16 21.7



Accesories for
2 x 2
Weight (Lbs)
Box of 25 Steel Brackets 9.0
Box of 25 Single Clamp 9.9
Steel Base for Surface Mount Not Applicable for 2" Square Posts



Post
Size
Gauge
Weight (Lbs)
72"H 3 x 3 11 28.8
84"H 3 x 3 11 33.5
96"H 3 x 3 11 36.6
132"H 3 x 3 11 50.3
96"H plus 45 degree angle 3 x 3 11 48.1
132"H plus 45 degree angle 3 x 3 11 62.5



Accesories for
3 x 3
Weight (Lbs)
Box of 25 Steel Brackets 11.2
Box of 25 Single Clamp 9.9
Steel Base for Surface Mount Not Applicable for 2" Square Posts
