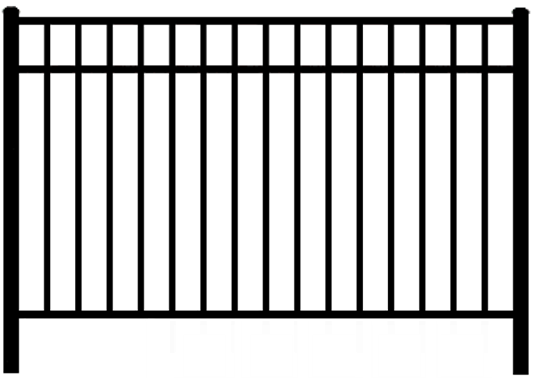

Style 202 Modified (CP-4) Benefits: |
|
|
- All posts include post cap, (post cap upgrades are available)
- All sections are pre-assembled for easy installation
- Sections can rake 6” per 8’ section
- Fence height is actual length of pickets
- All Jerith Aluminum Fence is powder coated
- 54" height only and designed to meet pool codes that require a 45" spacing between horizontal rails.
- Post spacing is 72-1/2" on center
|
|
Gate Information: |
|
- All gates are pre-assembled and include self-closing and self-latching hardware
- Use a gate post for both sides of the gate
- Double drive gates can be made by using 2 of the walk gates on the price list
- Two drop rods are provided with double drive gates
- Gate Sizes are size of opening between gate posts
|
|
|
Style 202 Modified (CP-4) Specifications: |
|
Component Sizes |
Residential Strength |
Pickets: |
5/8" sq. x .050" thick |
Rails: Top Walls:
Side Walls: |
1" x .055" thick
1" x .082" thick |
Standard Posts: |
2" sq. x .060" thick |
Gate Posts: |
2" sq. x .125" thick
4" sq. x .125" thick |
Spacing Between Pickets: |
3 13/16" |
Post Spacing: |
72 1/2" on center |
Heights Available: |
36", 48", 60", 72" |
Standard Colors: |
Black, White, Bronze |
Weight Supported: |
350+ lbs. per section |
|
|
Download Specifications: |
|
|
|
