The SWC Swing Gate Opener for gate up to 18' in length and 700 lbs per gate leaf |
|
|
SWC Series - Commercial Linear Swing Gate Operators |
|
|
Gate up to 1000 pounds!
and 19' in length!

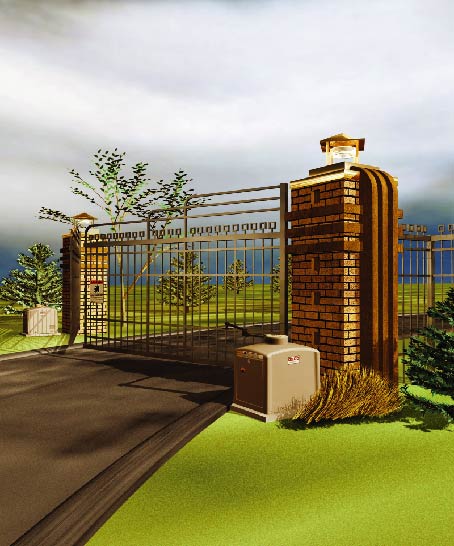

SWC Gate Opener
Call For Pricing |
|
| |
|
Description: |
|
The
new sleek design of the SWC commercial swing gate operator
add the touch of European design to your automatic gate
operator. The SWC electric gate opener includes a durable
weather-resistant, UV stabilized polyethylene one-piece
cover. To see more features this automatic
gate openers cover see the details below.
Let our customer service representatives assist you
in purchasing you SWC commercial Automatic Gate Opener and choosing
the accessories to enhance you automatic gate opener. Call 1.330.342.3744
|
Specifications: |
|
Model |
HP |
Drive Type |
Voltage |
Phase |
Maximum Gate Width |
Gate Speed |
Maximum Gate Weight |
SWC-2**
|
1/2 |
Crank |
115 of 230V |
Single |
17' ft |
11-14 Seconds |
600 LBS |
SWC-1** |
1 |
19' ft |
1000 LBS |
|
Dimensions: |
|
|
| |
|
Features: |
| |
-
- -All SW series
operators utilize a common UL325/UL991 compliant 24VDC control
board
- -Fully featured ApeX
board for complete access
- control,
security and entrapment protection
- -Gear reducer
and pillow block bearing provides smooth, reliable and quiet power
transmission
- -High starting
torque - heavy duty PSC motors
- -The sleek
and sturdy lockable cover is available in black, tan or landscape
granite with a lockable steel access door.
- -Exterior
reset button
- -Power on/off
button
- -Accessory
power outlet on 115V operators
- -3-button
station
- - Master/slave
compatible - LH/RH selectable
- -Easily accessible
control box and limit switches
- - Quick disconnect
crank assembly
- -Electrical/power
disconnect>
- -Accepts all
accessories
- -Footprint
18.31" x 22.64"
- -Inherent
entrapment sensing system featuring dual multi-turn precision
potentiometers for accurate adjustment and enhanced safety>
- -Continuous
tone entrapment alarm with reset button
- -Integrated
warning beeper during gate movement
* 15 diagnostic LEDs on board for ease of setup and troubleshooting
- -Selectable
pre-start alarm with provision for ADA compliant visual prestart
and run alarm
- -AC and DC
power available for access control accessories
- -Integrated
maximum run and auto close timer (0-124 sec)
- -Built-in
master/slave capability using 3-wire shielded cable
- -Heavy duty
zinc plated steel chassis
- -Sleek and
sturdy UV-stabilized polyethylene cover
- -Universal
pad mount standard - optional post mount kit available
|
|
|
|
|
SWC Discounted Pricing
|
Item # |
Description |
Our Price |
Online Ordering |
SWC-211 |
SWC Swing Gate Opener (115V) (1/2HP)
(600 LBS) |
Call For Pricing |
--> |
SWC-221 |
SWC Swing Gate Opener (230V) (1/2HP)
(600 LBS) |
Call For Pricing |
|
SWC-111 |
SWC Swing Gate Opener (115V) (1HP)
(1000 LBS) |
Call For Pricing |
|
SWC-121 |
SWC Swing Gate Opener (230V) (1HP)
(1000 LBS) |
Call For Pricing |
|
Linear Accessories |
Item # |
Description |
Our Price |
Buy Now |
2120-483 |
Post Mount Kit |
Call For Pricing |
|
2500-1116 |
Heater,
115V |
Call For Pricing |
|
2500-2117 |
Heater,
230V |
Call For Pricing |
|
2650-111 |
Cold
Weather Package, 115V
(must be ordered with operator) |
Call For Pricing |
|
2650-112 |
Cold
Weather Package, 230V
(must be ordered with operator) |
Call For Pricing |
|
2100-2041 |
Base
Plate
(seals bottom of unit) |
Call For Pricing |
|
2650-121 |
Torque
Limiter, 5" (factory installed) SWC |
Call For Pricing |
|
2650-117 |
Torque
Limiter, 3" (factory installed) SWC |
Call For Pricing |
|
2650-124 |
SWC High-Cycle Modification
(#60 gear box) |
Call For Pricing |
|
Vehicle
Detectors (for use as an opening or reversing device) |
Item # |
Description |
Our Price |
Buy Now |
2510-190 |
Single
Detector
pre wired in operator, 24VDC |
Call For Pricing |
|
2510-191 |
Two (dual)
Detector
pre wired in operator, 24VDC |
Call For Pricing |
|
Transmitters |
Item # |
Description |
Our Price |
Buy Now |
MT-1B |
Single Button Handheld Transmitter |
Call For Pricing |
|
MT-2B |
Double Button Handheld Transmitter |
Call For Pricing |
|
ACT-31B |
Single Button Miniature Transmitter |
Call For Pricing |
|
ACT-34B |
Four Button Miniature Transmitter |
Call For Pricing |
|
MGT |
Supervised Gate Edge Transmitter |
Call For Pricing |
|
|
