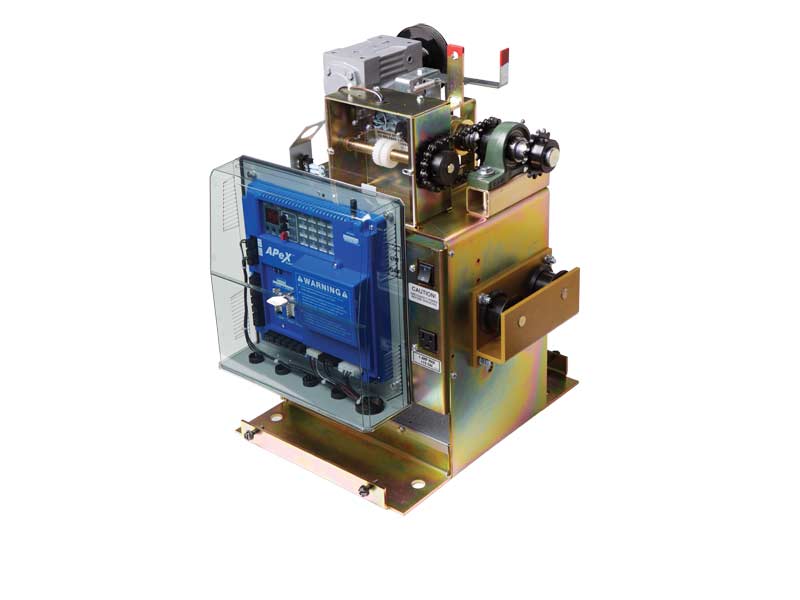

SLC MEDIUM DUTY SLIDE GATE OPERATOR
SLC Commercial
SLC Commercial

  • 1/2 or 1 HP continuous-duty PSC motor
  • 115 VAC or 230 VAC single phase

SLD Commercial/Residential

  • DC-powered battery back-up with advanced soft start/soft stop motor control
  • Full-time 1/2 HP DC motor
  • Selectable fail-safe or fail-secure modes of operation
  • Solar power capable



SLR Residential
1/2 HP PSC motor
115 VAC or 230 VAC single phase

Common Features
Crank style
Black UV stabilized polyethylene cover
Pad mount standard; post mount optional
Exterior reset button
UL325/UL991 compliant APeX controller
Fully integrated radio receiver


SL SERIES SLIDE GATE OPERATOR SPECIFICATIONS
Model
HP
Voltage
(Single Phase)
Drive
Type
Maximum
Gate Length
Maximum
Gate Weight
Gate
Speed
Maximum
Cycles
SLC
SLC-2
1/2
115 or 230 V #41 chain
37'
1000 lbs
11"/sec
continuous duty
SLC-1
1
115 or 230 V #40 chain
45'
2000 lbs
11"/sec
continuous duty
SLD
SLD-211
1/2
115V/24 VDC
Battery Backup
(solar charger optional)
#41 chain
40'
1000 lbs
12"/sec
continuous duty
SLR
SLR-211
1/2
115 V #41 chain
25'
500 lbs
11"/sec
150/day
SLR-221
1/2
230 V #41 chain
25'
500 lbs
11"/sec
150/day



Electrical:

  • Integral entrapment sensing system with digital set point for quick accurate adjustment and enhanced safety
  • Continuous tone entrapment alarm with reset button
  • Integrated programmable warning beeper during gate movement
  • LED diagnostic display for ease of setup and troubleshooting
  • Selectable pre-start alarm with provision and ADA compliant visual pre-start and run alarm
  • Regulated 24 Volt DC power available for access control accessories
  • Integrated maximum run and auto close timer (0-9 minutes)
  • Built-in networked dual gate capability using 3-wire shielded cable

Mechanical:

  • Heavy-duty, zinc-plated, steel chassis
  • Right-angle gear reducer
  • 1" diameter output shaft
  • Optional adjustable torque limiter
  • Heavy-duty pillow block bearings
  • Universal pad mount standard; optional post mount kit

1. Cam Operated Limits
Easily accessible through access door

2. APeX Controller
UL325/UL991 compliant 24 VDC control module
Full featured for access control, security and entrapment protection


3. Steel Crank
Easily removable
Integrated manual disconnect


4. Heavy-Duty Components

5. Standard Convenience Features
Exterior reset button
Power on/off button
Accessory power outlet on115V machines
Integrated 3-button station

Includes APeX Controller with integrated radio receiver, plug-in loop detector capability, surge protection, and easy to read labeling standard

Model HP Voltage Phase Maximum
Gate Weight
Maximum Gate Length Mazimum Gate Weigt Gate Speed List Price Buy Now!
SLC-211 1/2 115
1
500 lbs Chain 30ft 11"/Sec $1,639.99


SLC-221 1/2 230 1 500 lbs Chain 30ft 11"/Sec $1,639.99


Compatible Linear Transmitters
MT-1B Single Button Handheld Transmitter $29.50


MT-2B Double Button Handheld Transmitter $32.50


ACT-31B Single Button Miniature Transmitter $29.50


ACT-34B Four Button Minature Transmitter $32.50


MGT Supervised Gate Edge Transmitter $145.00


Double-slide- Two Operators required- Slave capability is built in

2500-2015 - 100 ft. cable Master//Slave communication wire ..................... $75.00

2650-107 Remote Disconnect kit ........................................ add $215.00

2100-2008 Accessory Shelf................................................. add $25.00

2100-2011 Base Plate (seals bottom of unit).......................... add $45.00

2650-120 Torque Limiter Modification................................... add $155.00

2500-2207 Low Voltage Surge Suppressor................................. add $42.00

2500-2116 Heater, 115V ....................................................... add $136.00

2500-2117 Heater, 230V ....................................................... add $136.00

2650-111 Cold Weather package, 115V (Arctic oil, Heater, cogged V-Belt)........ add $198.00

2650-112 Cold Weather package, 230V (Arctic oil, Heater, cogged V-Belt)........ add $198.00

OPEN ROLLERS ON CANTILEVER GATES MUST HAVE ROLLER COVERS ON ALL INSTALLATION
