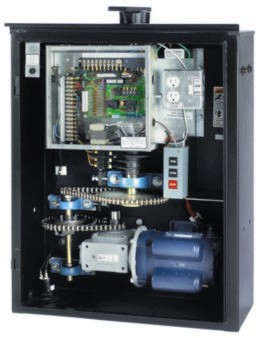

The SWG Swing Gate Opener for gate up to 26' in length and 1000 lbs per gate leaf |
|
|
SWG Series - Commercial Industrial Linear Swing Gate Operators |
|
|
For gates up to 1000 pounds
and 26' in length!
|
|
|
|
Description: |
|
The SWG Automatic Swing Gate operator is for Commercial and Industrial applications. This gate opener comes with a number of features mentioned below and has the options of a 1/2 hp. to a 1 hp. motor. You can get the SWG in a single or a three phase voltage system and has the capacity to add a number of accessories to make this automatic swing gate opener the perfect solution for you gate needs.
Let our customer service representatives assist you
in purchasing you SWG Commercial and Industrial Automatic Gate Opener and choosing
the accessories to enhance you automatic gate opener. Call 1.330.342.3744
|
Specifications: |
|
| Model |
HP |
Voltage/
Phase |
Max.
Gate
Width |
Max.
Gate
Weight |
Opening
Speed |
| SWG-211 |
1/2 |
115 VAC/1 |
18 ft. |
700 lbs. |
12-15 sec. |
| SWG-221 |
1/2 |
230 VAC/1 |
18 ft. |
700 lbs. |
12-15 sec. |
| SWG-283 |
1/2 |
208 VAC/3 |
18 ft. |
700 lbs. |
12-15 sec. |
| SWG-223 |
1/2 |
230 VAC/3 |
18 ft. |
700 lbs. |
12-15 sec. |
| SWG-243 |
1/2 |
460 VAC/3 |
18 ft. |
700 lbs. |
12-15 sec. |
| SWG-411 |
3/4 |
115 VAC/1 |
22 ft. |
900 lbs. |
12-15 sec. |
| SWG-421 |
3/4 |
230 VAC/1 |
22 ft. |
900 lbs. |
12-15 sec. |
| SWG-483 |
3/4 |
208 VAC/3 |
22 ft. |
900 lbs. |
12-15 sec. |
| SWG-423 |
3/4 |
230 VAC/3 |
22 ft. |
900 lbs. |
12-15 sec. |
| SWG-443 |
3/4 |
460 VAC/3 |
22 ft. |
900 lbs. |
12-15 sec. |
| SWG-111 |
1 |
115 VAC/1 |
26 ft. |
1000 lbs. |
12-15 sec. |
| SWG-121 |
1 |
230 VAC/1 |
26 ft. |
1000 lbs. |
12-15 sec. |
| SWG-183 |
1 |
208 VAC/3 |
26 ft. |
1000 lbs. |
12-15 sec. |
| SWG-123 |
1 |
230 VAC/3 |
26 ft. |
1000 lbs. |
12-15 sec. |
| SWG-143 |
1 |
460 VAC/3 |
26 ft. |
1000 lbs. |
12-15 sec. |
|
Dimensions: |
|
|
| |
|
Features: |
|
- Heavy-duty 60:1 right-angle
C-face gear reduce
- Heavy-duty gate arm assembly
with harmonic design for smoother starts and stops
- Over-center gate arm "locking"
angle
- #40 roller chain and sprockets
- Adjustable torque limiter
- Heavy-duty pillow-block bearings
- Weather-resistant galvannealed
steel cabinet with powder coat finish
- Lockable, gasketed, hinged
and removable front cover for easy
- Manual release is is easily
accessible
- 3 - 3 1/2" OD post mounting
- Optional pad mounting pedestal
available
- Continuous tone entrapment
alarm
- Warning beeper to sound
when gate is moving
- Pre-start audio/visual outputs
included
- 1/2, 3/4 or 1 hp, 115 or
230 VAC, single phase, thermally protected, heavy duty C-face
PSC motor; 1/2, 3/4 or 1 hp, 230 or 460 VAC, 3 phase heavy
duty motor
- Power on/off switch
- Emergency stop/reset button
on front cover
- Duplex receptacle on 115
VAC units
- Three-button control station
included
- Accessory connections are
24-volt AC or DC
- Easily adjustable rotary
limit switches
- Full system capable for access
controls and reversing devices
- Operator is pre-wired to
accept contact and non-contact detection devices such as
contact edges and/or photo electric photo eyes
- Solid state circuit board,
24 VDC
- Inherent current sensing
system
- 15 LEDs for easy setup and
troubleshooting
- Built in maximum run timer
and auto close timer
- Right-hand/left-hand easy
conversion
- Master/Slave - simple three-wire
connection
- Entrapment Alarm
|
|
SWG Gate Opener Pricing |
Item # |
Description |
Our Price |
Buy Now |
| SWG-211 |
SWG Commercial Industrial
Swing Gate Opener |
Call For Pricing |
|
| SWG-221 |
SWG Commercial Industrial
Swing Gate Opener |
Call For Pricing |
|
| SWG-283 |
SWG Commercial Industrial
Swing Gate Opener |
Call For Pricing |
|
| SWG-223 |
SWG Commercial Industrial
Swing Gate Opener |
Call For Pricing |
|
| SWG-243 |
SWG Commercial Industrial
Swing Gate Opener |
Call For Pricing |
|
| SWG-411 |
SWG Commercial Industrial
Swing Gate Opener |
Call For Pricing |
|
| SWG-421 |
SWG Commercial Industrial
Swing Gate Opener |
Call For Pricing |
|
| SWG-483 |
SWG Commercial Industrial
Swing Gate Opener |
Call For Pricing |
|
| SWG-423 |
SWG Commercial Industrial
Swing Gate Opener |
Call For Pricing |
|
| SWG-443 |
SWG Commercial Industrial
Swing Gate Opener |
Call For Pricing |
|
| SWG-111 |
SWG Commercial Industrial
Swing Gate Opener |
Call For Pricing |
|
| SWG-121 |
SWG Commercial Industrial
Swing Gate Opener |
Call For Pricing |
|
| SWG-183 |
SWG Commercial Industrial
Swing Gate Opener |
Call For Pricing |
|
| SWG-123 |
SWG Commercial Industrial
Swing Gate Opener |
Call For Pricing |
|
| SWG-143 |
SWG Commercial Industrial
Swing Gate Opener |
Call For Pricing |
|
Linear Accessories |
Item # |
Description |
Our Price |
Buy Now |
2120-483 |
Post Mount Kit |
Call For Pricing |
|
2500-1116 |
Heater,
115V |
Call For Pricing |
|
2500-2117 |
Heater,
230V |
Call For Pricing |
|
2650-111 |
Cold
Weather Package, 115V
(must be ordered with operator) |
Call For Pricing |
|
2650-112 |
Cold
Weather Package, 230V
(must be ordered with operator) |
Call For Pricing |
|
2100-2041 |
Base
Plate
(seals bottom of unit) |
Call For Pricing |
|
2650-121 |
Torque
Limiter, 5" (factory installed) SWG |
Call For Pricing |
|
2650-117 |
Torque
Limiter, 3" (factory installed) SWG |
Call For Pricing |
|
2650-124 |
SWG High-Cycle Modification
(#60 gear box) |
Call For Pricing |
|
Transmitters |
Item # |
Description |
Our Price |
Buy Now |
2510-043 |
Receiver (One
Channel)
( 4-wire style, with 15' coaxial antenna) |
Call For Pricing |
|
2500-278 |
|
Call For Pricing |
|
2500-835 |
Single
Button Mini Transmitter |
Call For Pricing |
|
Vehicle
Detectors (for use as an opening or reversing device) |
Item # |
Description |
Our Price |
Buy Now |
2510-190 |
Single
Detector
pre wired in operator, 24VDC |
Call For Pricing |
|
2510-191 |
Two (dual)
Detector
pre wired in operator, 24VDC |
Call For Pricing |
|
|
